16mm Dot Type Push Button Switch LED Illuminated , LED Latching Push Button Switch

Name: 16mm Dot Type Push Button Switch LED Illuminated LED Latching Push Button Switch
Brand: YUESHUN
Price: 1 USD

Brand Name : YUESHUN

Model Number : LA16H-11D

Certification : CE RoHS

Place of Origin : Wenzhou, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : The product is packed in foam box to prevent damage during transportation.

LED color : Red,Green,Yellow,Orange,Blue,White,Purple

Led Voltage : 3V 6V 12V 24V 36V 110V 220V

Protection Level : IP67

Mechanical life : More than1,000,000 cycles

Terminal material : silver alloy

Panel mounting : 16mm

Contact Now

16mm High Head Dot Type Push Button Switch LED Illuminated stainless steel aluminum Latching push button switch

Product Description

- Illuminated push button switches are made of 304 Stainless Steel, 316 Stainless Steel, Black Aluminum, Nickel Plated Brass. Gold plated brass and so on.
- This waterproof and illuminated pushbuttons are great for the appliance used in wet environment, such as boat, outside door appliance, drink appliance, also great for DIY electric equipment.
- Package : 40pcs/box, or 100pcs/box. 1 piece push button switches with 1 robber ring.

Product Attribute

Mounting hole Diameter	16 mm	Mounting Panel Thickness	1-10 mm
Max.Switch Rating	5A / 250VA C	Protection Level	IP67
Operation type	Momentary Latching	Contact Configuration	1NO + 1NC 2NO + 2NC
Body Material	Stainless steel Aluminum	Operation Distance	About 2.8 mm
LED	LED Color	Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
	Led Voltage	3V 6V 12V 24V 36V 110V 220V are available.
	LED Type	Dot Symbol High Head

16mm Dot Type Push Button Switch LED Illuminated , LED Latching Push Button Switch

Product Tags:

miniature illuminated push button switch

led light push button switch

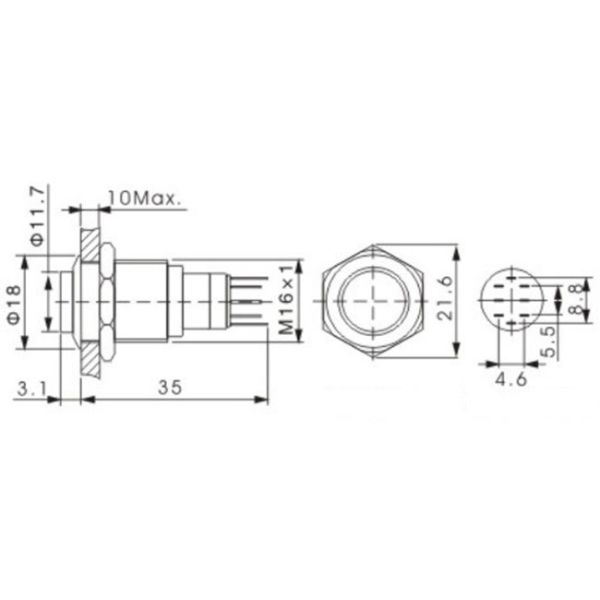

16mm Dot Type Push Button Switch LED Illuminated , LED Latching Push Button Switch Images
